How Firefighters Can Use the Dark30 Defiance 640 PTZ Thermal Camera

Fire doesn't care about lighting conditions. It produces its own heat signature, and so does every person caught in its path, which is exactly why thermal imaging has become one of the most consequential tools in modern fire service. The Dark30 Defiance 640 PTZ is a vehicle-mounted thermal camera built around a high-sensitivity sensor and a full-rotation pan-tilt-zoom system, and its capabilities translate naturally to several critical firefighting applications.

Situational Awareness Before You Dismount

The first minutes at a fire scene are decisive. Incident commanders need to read the structure, assess extension patterns, and locate any victims before crews make entry, but smoke, darkness, and distance can make a visual survey from the cab almost impossible with conventional optics.

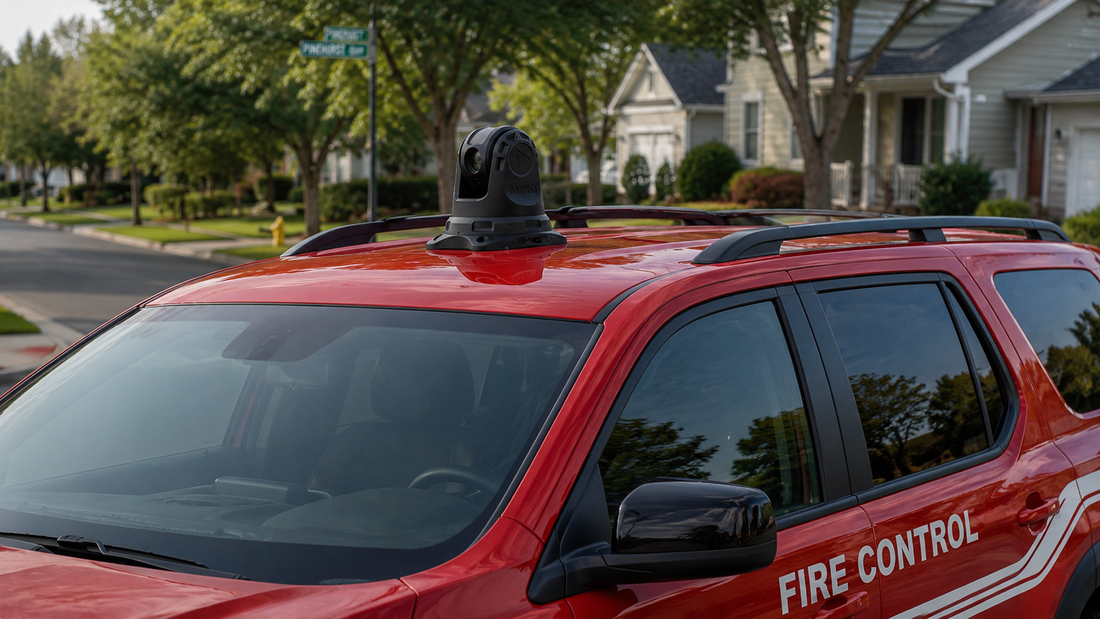

Mounted to the roof of a command vehicle or apparatus, the Defiance 640 PTZ gives incident commanders a thermal overview of the scene while the truck is still rolling or parked at a safe perimeter. Its continuous 360° pan and tilt range, which can rotate anywhere from straight down to 45° above horizontal, means a single camera placement can sweep the entire incident footprint without repositioning. The 1,250-yard detection range means meaningful thermal data is available well before crews approach the structure, and the 1–8× digital zoom allows commanders to scrutinize specific areas of concern from distance.

The included 10.1-inch HD LCD display, connected via low-latency HDMI, puts that thermal picture in front of decision-makers immediately. Heat buildup on an exterior wall, fire in a second-story window obscured by smoke, or a hot spot on an adjacent roof — all of it becomes legible before the first boot hits the ground.

Victim Search and Perimeter Monitoring

Outdoor victim searches — whether for civilians who fled a structure fire or for firefighters who have become separated from their crew — are another area where the Defiance's range and rotation become operationally significant. A thermal camera mounted on a command vehicle can continuously sweep a defined perimeter while ground teams work, flagging heat signatures that manual search patterns might miss.

The camera's five thermal palettes give operators flexibility in how they read the scene. White hot and black hot modes are the clearest for identifying body heat against cooler backgrounds, while rainbow and gradient modes can help distinguish intensity gradations when assessing burn patterns across a wide area. Switching between palettes takes seconds via the variable-speed wireless remote or the Dark30 mobile app for iOS and Android.

Wildland Interface and Large-Area Monitoring

At wildland-urban interface fires, the scale of the incident can overwhelm ground-level situational awareness. The Defiance 640 PTZ mounted on a brush truck or command unit provides a persistent overhead thermal eye that keeps pace with the vehicle, scanning for fire spread, spotting new ignitions in adjacent brush, and tracking crew positions relative to advancing fire lines.

The IP66 weather resistance and aluminum housing mean the camera handles exposure to smoke, embers, ash, and precipitation without degradation. Its operating temperature range of -4°F to 122°F covers the thermal stress of most active fire environments, and the return-to-home function allows operators to snap back to a preset reference bearing after sweeping, which is useful for maintaining a fixed monitoring angle on a specific structure or exposure.

Post-Incident Overhaul and Hotspot Detection

After knockdown, fire crews enter overhaul — the painstaking process of finding and extinguishing hidden heat pockets in walls, ceilings, and debris piles that can reignite hours later. The Defiance's high-sensitivity sensor, rated at under 30 mK NEDT, is capable of detecting very small temperature differences, which matters when the target is a low-temperature ember buried in structural material rather than an open flame.

Positioned on a vehicle parked at the structure's perimeter, the camera can continuously monitor exterior surfaces and adjacent exposures during overhaul, alerting crews to new heat signatures without requiring a dedicated observer. The TF card slot supports onboard recording, providing documentation of heat activity across the incident timeline — useful for both safety reviews and fire investigation.

A Practical Installation for Any Apparatus

One barrier to adopting vehicle-mounted thermal systems is installation complexity. The Defiance addresses this with a hardware kit that includes 100-pound-pull magnets, suction cups, a 2-inch riser, and permanent mounting bolts, giving apparatus crews the option to install the camera in minutes on virtually any vehicle — from a Type 1 engine to a brush rig to a command SUV — without permanent modification if the situation calls for flexibility.

Power comes from a standard 12V DC adapter, compatible with the auxiliary power systems on most fire apparatus. Camera control via the Dark30 mobile app means a second crew member or an aide can operate the PTZ while the incident commander focuses on the display and radio traffic.

The Defiance 640 PTZ ships as a complete turn-key system — camera, 10.1-inch display, remote, mounting hardware, and carrying case — backed by a five-year warranty.
